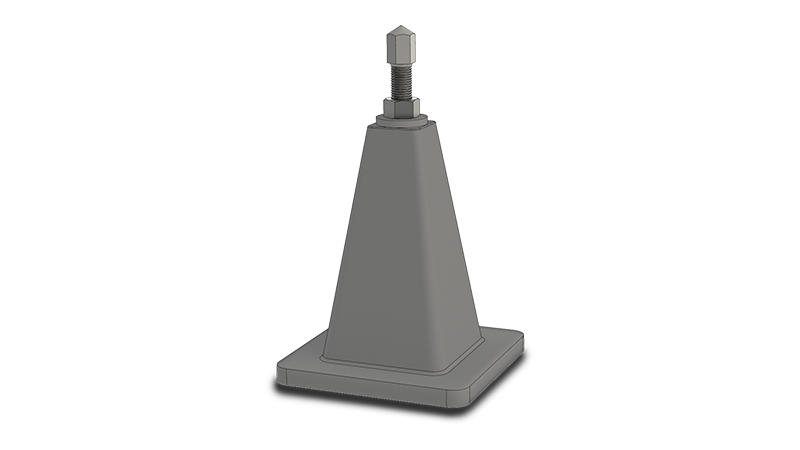

Adjustable support blocks type VSK

The Stolle height supports have been developed to align the Stolle cast iron plates to a comfortable working height. For this purpose, the plates are placed on the support trestles and adjusted by means of an M30 thread (for each height support). The types -S and -K differ in the geometry of the support surface. The -DV support stand has a rubber-metal buffer that protects the base from vibrations. In the -BE version, the plate and support stand are bolted together and the support stand is also additionally bolted to the base. This is necessary when higher accuracies are desired.

Highlights

• Stable cast construction
• Adjustable M30 supporting bolt, with conical surface (M20 for small plates)
• Optional with ball-bearings for precise adjustment
• Usable for multifunctional applications
• Under compressive force
