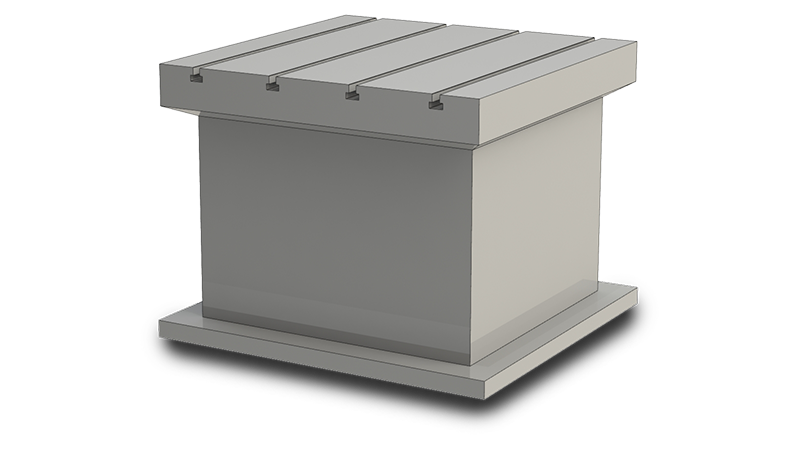

Type ST-A

Work Tables

Type ST-A

Highlights

  1. Material: special cast iron with steel alloy
  2. Surface machined to DIN 876/IIIt
  3. All sides machined plane parallel
  4. Circumferential with clamping rim
  5. Clamping surface with T-slots according to DIN 650

Your Contactperson

Sebastian Höller

Sebastian Höller

Vertrieb Prüftechnik, Bestandgeführte Lagerartikel

Work Tables Type ST-A
Size* L/W/H DIN Norm* Size T-Nut Ammount Request
ID L [mm] W [mm] H [mm] T0 [pcs] BX [mm] X [mm] TDIN650 [mm] G [kg]
ST-A 10.10.8-22 1000 1000 800 4 125 250 22H12 1300
ST-A 15.10.8-22 1500 1000 800 4 125 250 22H12 1900
ST-A 15.12.8-22 1500 1200 800 5 100 250 22H12 2200
ST-A 20.10.8-22 2000 1000 800 4 125 250 22H12 2400
ST-A 20.12.8-22 2000 1200 800 5 100 250 22H12 2700
ST-A 20.14.8-22 2000 1400 800 6 75 250 22H12 3300
ST-A 25.10.8-22 2500 1000 800 4 125 250 22H12 3000
ST-A 25.12.8-22 2500 1200 800 5 100 250 22H12 3400
ST-A 25.14.8-22 2500 1400 800 6 75 250 22H12 4100
ST-A 10.10.8-28 1000 1000 800 4 125 250 28H12 1300
ST-A 15.10.8-28 1500 1000 800 4 125 250 28H12 1900
ST-A 15.12.8-28 1500 1200 800 5 100 250 28H12 2200
ST-A 20.10.8-28 2000 1000 800 4 125 250 28H12 2400
ST-A 20.12.8-28 2000 1200 800 5 100 250 28H12 2700
ST-A 20.14.8-28 2000 1400 800 6 75 250 28H12 3300
ST-A 25.10.8-28 2500 1000 800 4 125 250 28H12 3000
ST-A 25.12.8-28 2500 1200 800 5 100 250 28H12 3400
ST-A 25.14.8-28 2500 1400 800 6 75 250 28H12 4100
